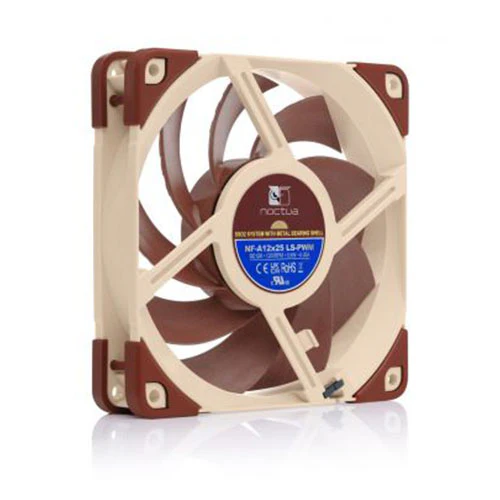

Noctua NF-A12x25 LS-PWM 120mm Premium Fan 4-Pin
- Size 120x120x25 mm
- Mounting hole spacing 105x105 mm
- Connector & pin-configuration 4-pin PWM
- Cable length 20cm + 30cm NA-EC1 extension cable
- Bearing SSO2
- Blade geometry A-Series with Flow Acceleration Channels
- Frame technology AAO (Advanced Acoustic Optimisation)
- Material Sterrox® LCP
- Rotational speed (+/- 10%) 1200 RPM
- Rotational speed with L.N.A. (+/- 10%) 900 RPM
- Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
- Airflow 55,7 m³/h
- Airflow with L.N.A. 39,4 m³/h
- Acoustical noise 12,1 dB(A)
- Acoustical noise with L.N.A. 7,6 dB(A)
- Static pressure 0,82 mm H₂O
- Static pressure with L.N.A. 0,41 mm H₂O
- Input power (max.) 0,6 W
- Input current (max.) 0,05 A
- Operating voltage 12 V
- Voltage PWM signal 5 V
- MTTF > 150.000 h
- Scope of delivery
- NA-RC8 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- NA-AVG1 anti-vibration gasket for water cooling radiators
- Fan screws
$10.12
Original: $28.91
-65%Noctua NF-A12x25 LS-PWM 120mm Premium Fan 4-Pin—
$28.91
$10.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Size 120x120x25 mm
- Mounting hole spacing 105x105 mm
- Connector & pin-configuration 4-pin PWM
- Cable length 20cm + 30cm NA-EC1 extension cable
- Bearing SSO2
- Blade geometry A-Series with Flow Acceleration Channels
- Frame technology AAO (Advanced Acoustic Optimisation)
- Material Sterrox® LCP
- Rotational speed (+/- 10%) 1200 RPM
- Rotational speed with L.N.A. (+/- 10%) 900 RPM
- Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
- Airflow 55,7 m³/h
- Airflow with L.N.A. 39,4 m³/h
- Acoustical noise 12,1 dB(A)
- Acoustical noise with L.N.A. 7,6 dB(A)
- Static pressure 0,82 mm H₂O
- Static pressure with L.N.A. 0,41 mm H₂O
- Input power (max.) 0,6 W
- Input current (max.) 0,05 A
- Operating voltage 12 V
- Voltage PWM signal 5 V
- MTTF > 150.000 h
- Scope of delivery
- NA-RC8 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- NA-AVG1 anti-vibration gasket for water cooling radiators
- Fan screws
